Partition walls Brochure

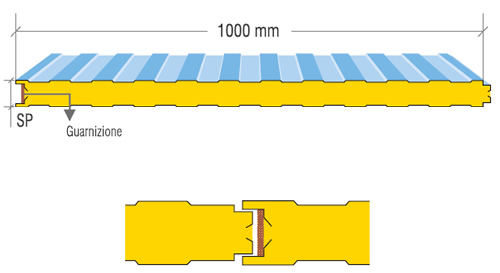

Thermal properties

K Thermal transmittance
Thickness	U Thermal conductivity	K Thermal Transmittance	R Thermal Insulance	Rw Acoustic Insulation
30 mm	0,022 W/mK	0,67 W/m2K	1,492 m2K/W	21 d(B)
40 mm	0,022 W/mK	0,53 W/m2K	1,886 m2K/W	23 d(B)
50 mm	0,022 W/mK	0,42 W/m2K	2,380 m2K/W	24 d(B)
60 mm	0,022 W/mK	0,34 W/m2K	2,941 m2K/W	25 d(B)
80 mm	0,022 W/mK	0,26 W/m2K	3,846 m2K/W	29 d(B)
100 mm	0,022 W/mK	0,21 W/m2K	4,761 m2K/W	32 d(B)
120 mm	0,022 W/mK	0,17 W/m2K	5,882 m2K/W	33 d(B)
150 mm	0,022 W/m2K	0,14 W/mK	7,142 m2K/W	34 d(B)
180 mm	0,022 W/m2K	0,13 W/mK	7,692 m2K/W	35 d(B)
200 mm	0,022 W/m2K	0,11 W/mK	9,090 m2K/W	36 d(B)

Static Properties

Allowable loads
Thickness	Distance between supports
	1,50	2,00	2,50	3,00	3,50
25 mm	120	85	75	45	30
30 mm	130	100	80	55	40
40 mm	160	135	100	70	50
50 mm	175	150	125	80	55
60 mm	185	165	130	120	80
80 mm	195	170	150	130	90
100 mm	225	175	160	145	105
120 mm	320	260	220	180	120
150 mm	325	265	225	190	125
180 mm	330	270	230	195	130
200 mm	340	280	240	200	135

U = Kg/m²

Allowable loads with 4 supports
Thickness	Distance between supports
	1,50	2,00	2,50	3,00	3,50	4,00	5,00
25 mm	120	85	75	50	38	30	22
30 mm	130	100	80	65	50	33	25
40 mm	160	135	100	74	60	43	34
50 mm	175	150	125	93	65	56	45
60 mm	185	165	130	125	90	80	65
80 mm	195	170	150	135	100	90	75
100 mm	225	175	160	155	145	110	85
120 mm	320	260	220	180	150	130	100
150 mm	325	265	225	195	155	135	110
180 mm	330	270	230	200	160	140	115
200 mm	340	280	240	220	165	145	120

U = Kg/m²
