Isotegola

Isotegola strips in wood Brochure

The niche product for construction in wood is born from the steady activity of Research & Development. Central position to the perception of new trends and new challenge against the improvement in the energy balance and the reduction of energy costs.

Request Information

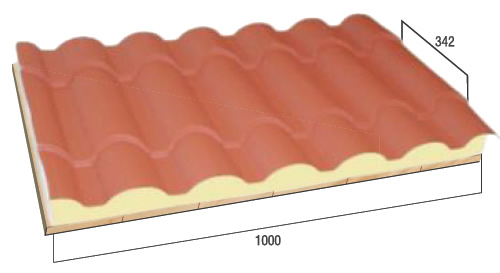

Upper Side:

Lower side:

Insulation:

Prepainted galvanized steel (mm) 5/10

Strips in wood (mm) 20

Pur density 40 +/- 2 Kg/m3

Thermal properties

K Trasmittance
Average Thickness U Thermal conductivity K Trasmittance R Thermal resistance
80 mm 0,02080 W/mK 0,26 W/m2K 3,84 m2K/W

Static Properties

Thermal Properties

Loads allowed
Average Thickness Distance between supports
1,50 2,00 2,50 3,00 3,50 4,00
80 mm 370 215 115 105 60 45

U = Kg/m2

Thermal Properties

Loads allowed
Average Thickness Distance between supports
1,50 2,00 2,50 3,00 3,50 4,00
80 mm 420 250 140 110 75 60

U = Kg/m2

Lunghezze standard
1.020 5.460 9.900
1.360 5.810 10.250
1.710 6.150 10.590
2.050 6.490 10.930
2.390 6.830 11.270
2.730 7.170 11.610
3.075 7.510 11.950
3.410 7.850 12.300
3.760 8.200 12.640
4.100 8.530 12.980
4.440 8.880 13.320
4.780 9.220 13.660
5.130 9.560 14.000

Special colors on request.

Upper Side

Red
Red (RAL 8004)
Antichizzato
Aged-looking (RAL 8004)
Copper
Copper
Sicilian terracotta
Sicilian terracotta
Sicilian terracotta aged-looking
Sicilian terracotta aged-looking

Lower side

Abete
Strips in wood

We realized a special equipment of fishing components. We relate as follow the technical and dimensional features useful to install Isotegola in record time.

Colmo sagomato

Fig. 1 - Shaped ridge cap: double shaped hinge elemento.

Colmo Smooth

Fig. 2 - Smooth ridge cap: hinged cap to shape during installation.

Colmo Smooth per diagonale

Fig. 3 - Smooth ridge cap for diagonal: ridge cap for four pitched roof.

Scossalina di testa

Fig. 4 - Head flahing: to cover the upper edge of the protruding panel.

Scossalina laterale chiusa

Fig. 5 - Closed side flashing: to cover the side edge of the protruding panel.

Scossalina frontale con scanalature

Fig. 6 - Front flashing with grooves: to cover the upper edge of the panel adjacent to a wall.

Scossalina laterale aperta

Fig. 7 - Open side flashing: to cover the side edge of the panel adjacent to a wall.

Frontalino - profilo per testata

Fig. 8 - Frontal silhouette: closing element for the head of panel which ensures a perfect aesthetic and a greater protection.

Cappellotto

Fig. 9 - Cappellotto

Rondella in gomma

Fig. 10 - Rubber washer
