Isotegola Brochure

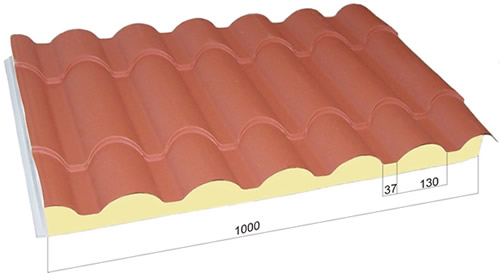

This innovative roofing system was designed to meet the increasingly specific needs of the construction market. In fact, the “Isotegola” insulating panel is an ideal synergy of economy and aesthetics. With its perfect insulation and extreme versatility, Isotegola ensures both high performance and ease of installation, making it the most interesting product in the sector.
Request InformationUpper Side:
Lower side:
Insulation:
pre-coated galvanised steel (mm) 5/10
pre-coated galvanised steel 4/10
polyurethane foam, density 40 +/- 2 Kg/m3
Thermal properties
| K Trasmittance | ||||
| Average Thickness | U Thermal conductivity | K Thermal Transmittance | R Thermal Insulance | Rw Acoustic Insulation |
|---|---|---|---|---|
| 80 mm | 0,022 W/mK | 0,26 W/m2K | 3,806 m2K/W | 30 d(B) |
| 100 mm | 0,022 W/mK | 0,21 W/m2K | 4,715 m2K/W | 31 d(B) |
| 130 mm | 0,022 W/mK | 0,16 W/m2K | 6,079 m2K/W | 32 d(B) |
Static Properties
| Loads allowed | ||||||
| Average Thickness | Distance between supports | |||||
|---|---|---|---|---|---|---|
| 1,50 | 2,00 | 2,50 | 3,00 | 3,50 | 4,00 | |
| 80 mm | 330 | 190 | 100 | 80 | 50 | 40 |
| 100 mm | 340 | 200 | 110 | 90 | 60 | 50 |
U = Kg/m2
| Allowable loads | ||||||
| Average Thickness | Distance between supports | |||||
|---|---|---|---|---|---|---|
| 1,50 | 2,00 | 2,50 | 3,00 | 3,50 | 4,00 | |
| 80 mm | 340 | 200 | 110 | 90 | 60 | 50 |
| 100 mm | 350 | 210 | 120 | 100 | 70 | 60 |
U = Kg/m2
| Standard lengths | ||
| 1.020 | 5.460 | 9.900 |
| 1.360 | 5.810 | 10.250 |
| 1.710 | 6.150 | 10.590 |
| 2.050 | 6.490 | 10.930 |
| 2.390 | 6.830 | 11.270 |
| 2.730 | 7.170 | 11.610 |
| 3.075 | 7.510 | 11.950 |
| 3.410 | 7.850 | 12.300 |
| 3.760 | 8.200 | 12.640 |
| 4.100 | 8.530 | 12.980 |
| 4.440 | 8.880 | 13.320 |
| 4.780 | 9.220 | 13.660 |
| 5.130 | 9.560 | 14.000 |
Special colours, copper, and aluminium available on request.
Upper face
Copper brown
(RAL 8004)
Antiqued copper brown
(RAL 8004)
Copper
Sicilian terracotta
Antiqued Sicilian Terracotta
Lower face
Ribbed grey white
(RAL 9002)
Wood effect
Fine aluminium sheet
We have created a line of special finishing components specifically for use with Isotegola. Below are the technical and dimensional characteristics of each component to aid with installing and completing your installations.

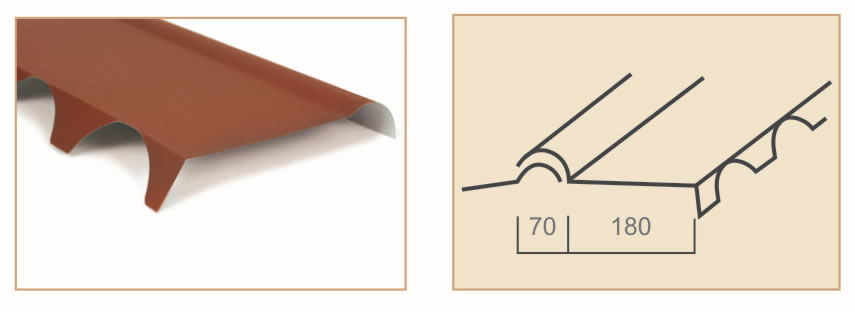

Fig. 1 - Shaped ridge flashing: double hinge-style shaped ridge flashing.

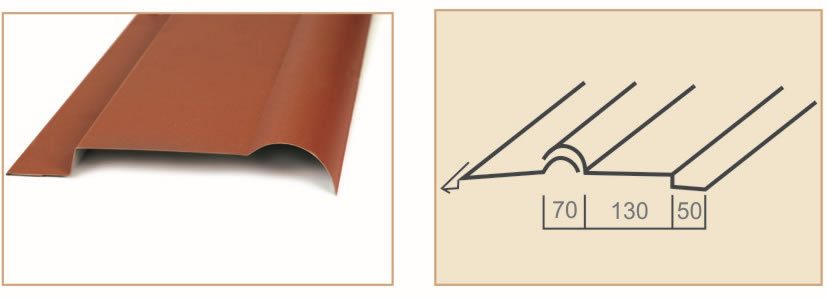

Fig. 3 - Smooth hip flashing: hip trim for roofs with four slopes.

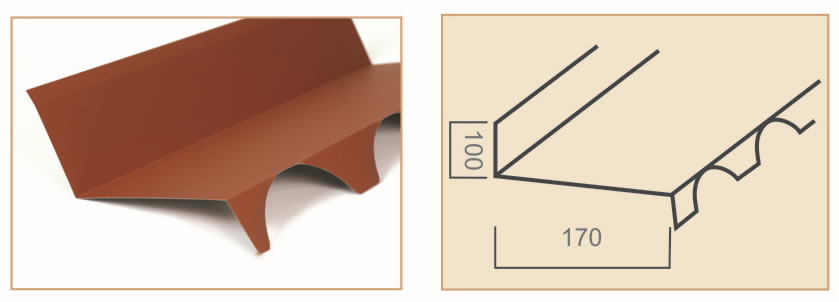

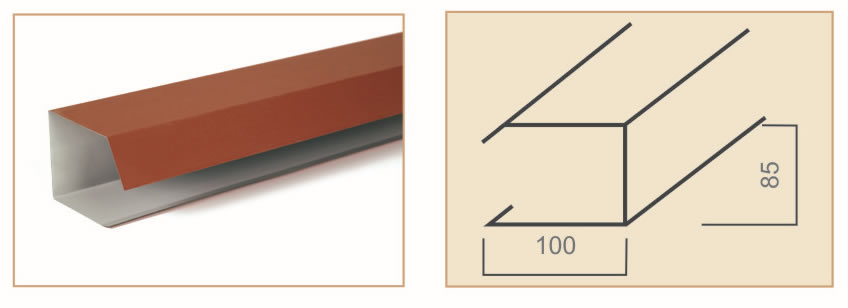

Fig. 5 - Closed lateral flashing: to protect the protruding lateral edge of the panels.

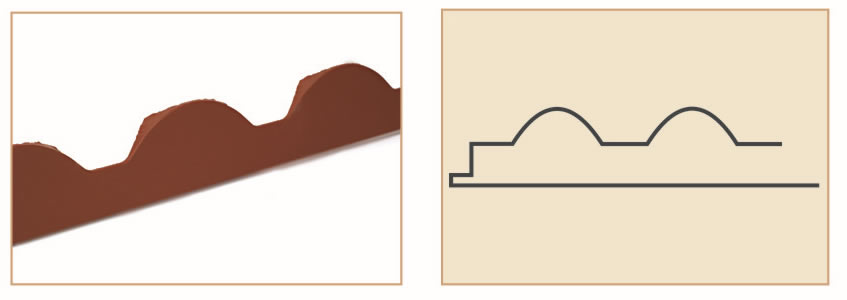

Fig. 7 - Front closure strip: closure element at the lower edge of the panels to ensure perfect aesthetics and enhanced protection.

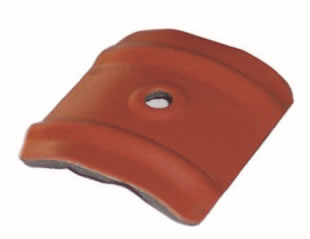

Fig. 9 - Fixing screw cap

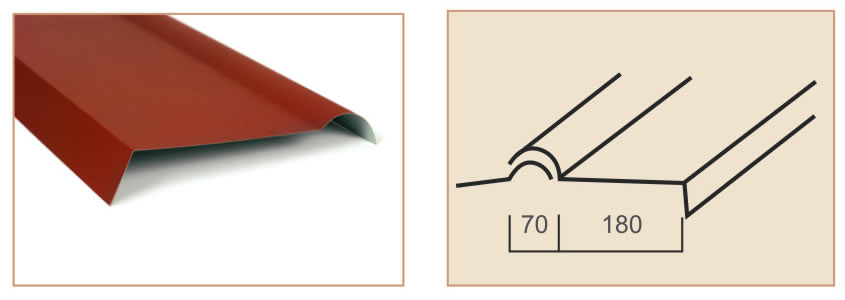

Fig. 2 - Smooth ridge flashing: hinge-style ridge to be shaped on-site.
Fig. 4 - Cap flashing with half-round channels: to protect the upper edge of the panel adjacent to a wall.

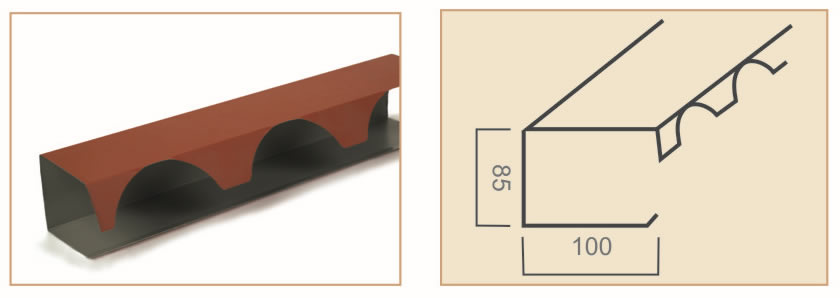

Fig. 6 - Ridge cap flashing: to protect the upper edge of the panel where it protrudes beyond a ridge.

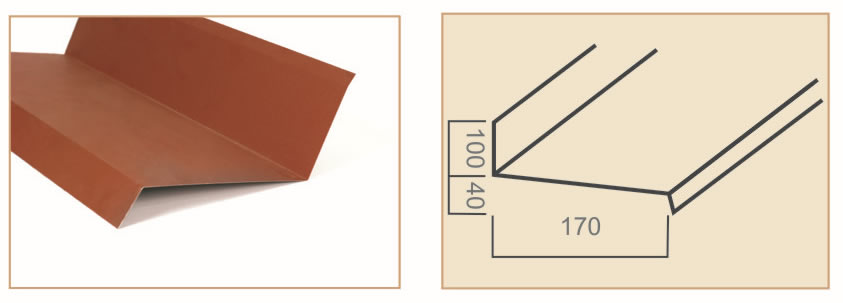

Fig. 8 - Open lateral flashing: to protect the lateral edge of the panel adjacent to a wall.
Fig. 10 - Rubber plug
