Parete fissaggio nascosto

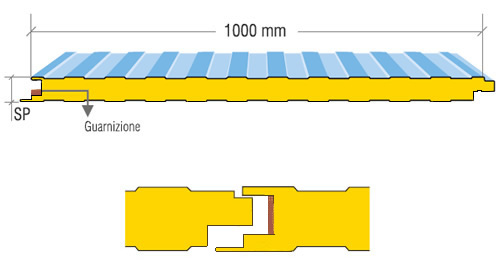

Hidden fixing panel Brochure

Waterproofing, insulating and easy installation, the simpler solution. Aeras of use: Civil and industrial contstruction, prefabricated, refrigerating cells, suspended ceilings and mobile walls.

Request Information

Upper Side:

Lower side:

Insulation:

Thickness:

Prepainted galvanized steel (mm) 4/10

Prepainted galvanized steel (mm) 4/10

Pur density 40 +/- 2 Kg/m3

from 30 to 200 mm

Thermal properties

K Trasmittance
Thickness U Thermal conductivity K Trasmittance R Thermal resistance
30 mm 0,02130 W/mK 0,71 W/m2K 1,41 m2K/W
40 mm 0,02098 W/mK 0,52 W/m2K 1,91 m2K/W
50 mm 0,02065 W/mK 0,41 W/m2K 2,42 m2K/W
60 mm 0,02082 W/mK 0,35 W/m2K 2,88 m2K/W
80 mm 0,02059 W/mK 0,26 W/m2K 3,89 m2K/W
100 mm 0,02049 W/mK 0,20 W/m2K 4,88 m2K/W
120 mm 0,02037 W/mK 0,17 W/m2K 5,89 m2K/W
150 mm 0,02038 W/m2K 0,19 W/mK 4,95 m2K/W
180 mm 0,02027 W/m2K 0,188 W/mK 4,99 m2K/W
200 mm 0,02015 W/m2K 0,175 W/mK 5,15 m2K/W

Static Properties

Thermal Properties

Loads allowed
Thickness Distance between supports
1,50 2,00 2,50 3,00 3,50
30 mm 130 100 80 55 40
40 mm 160 135 100 70 50
50 mm 175 150 125 80 55
60 mm 185 165 130 120 80
80 mm 195 170 150 130 90
100 mm 225 175 160 145 105
120 mm 320 260 220 180 120
150 mm 325 265 225 190 125
180 mm 330 270 230 195 130
200 mm 340 280 240 200 135

U = Kg/m2

Thermal Properties

Loads allowed 4 backing
Thickness Distance between supports
1,50 2,00 2,50 3,00 3,50 4,00 5,00
30 mm 130 100 80 65 50 33 25
40 mm 160 135 100 74 60 43 34
50 mm 175 150 125 93 65 56 45
60 mm 185 165 130 125 90 80 65
80 mm 195 170 150 135 100 90 75
100 mm 225 175 160 155 145 110 85
120 mm 320 260 220 180 150 130 100
150 mm 325 265 225 195 155 135 110
180 mm 330 270 230 200 160 140 115
200 mm 340 280 240 220 165 145 120

U = Kg/m2

Special colors on request.

Upper Side

Dogate
Dogate white/gray
(RAL 9002)
Smooth
Smooth white/gray
(RAL 9002)
Embossed
Embossed white/gray
(RAL 9010)

Lower side

Dogate Bianco - grigio
Dogate white grey
(RAL 9002)
Smooth white grey
Smooth white grey
(RAL 9002)
Embossed white
Embossed white
(RAL 9010)
Microribbed
Microribbed (Silver)
