Sound-insulating panels Brochure
Request InformationClass A sound absorption
For 50 mm thick panels:
For 80 mm thick panels:
For 100 mm thick panels:
RW 34 dB
RW 40 dB
RW 44 dB
Dimensions
Width: 1000 mm
Lenght by request

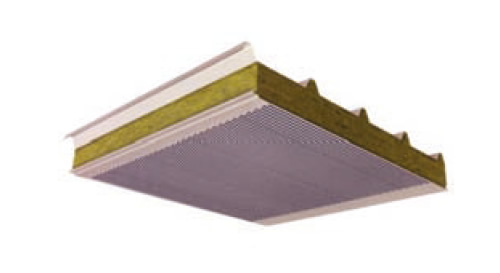

Insulation
Layers of bio-soluble mineral wool strips, staggered lengthwise.
Density 100 kg/m3
Thermic coefficient I: 0,038 W/m°K
Supports
Pre-coated galvanised steel.
Micro-perforated lower support (holes Ø 0.6 mm)
Thermal properties
| K Thermal transmittance | ||||
| THICKNESS | U Thermal Conductivity | K Thermal Transmittance | R Thermal Insulance | Rw Acoustic Insulation |
|---|---|---|---|---|
| 50 PHON | 0,037 W/mK | 0,70 W/m2K | 1,428 m2K/W | 34 d(B) |
| 80 PHON | 0,037 W/mK | 0,47 W/m2K | 2,127 m2K/W | 40 d(B) |
| 100 PHON | 0,037 W/mK | 0,38 W/m2K | 2,631 m2K/W | 44 d(B) |
Special colours, copper, and aluminium available on request.
Upper face
White grey
(RAL 9002)
Siena red
(RAL 3009)
Dark brown
(RAL 8017)
Below are the technical and dimensional characteristics of each component to aid with installing and completing your installations.
Fig. 1 - Closed lateral flashing: to protect the protruding lateral edge of the panels.
Fig. 3 - Ridge cap flashing: to protect the upper edge of the panel where it protrudes beyond a ridge.
Fig. 5 - Shaped ridge flashing: double hinge-style shaped ridge flashing.
Fig. 7 - Under-ridge caps: for connecting between pitches in metal roofing.
Fig. 9 - Fixing screw cap
Fig. 2 - Open lateral flashing: to protect the lateral edge of the panel adjacent to a wall.
Fig. 4 - Cap flashing: to protect the upper edge of the panel adjacent to a wall.
Fig. 6 - Smooth ridge flashing: hinge-style ridge to be shaped on-site.
Fig. 8 - Shaped front closure strip: for the lower edge of the panels, available in thicknesses of 30, 40 and 50 mm.
Fig. 10 - Self-piercing and tapping screws available in various sizes.
