Copertura REI
R - stability (R) is the ability of a building element to maintain its mechanical strength under the action of fire;
E - airtightness (E) is the ability of a building element to prevent the passage (or production) of flames, vapours, or hot gases from the exposed side to the unexposed side;
I - insulation (I) is the ability of the building element to reduce, within certain limits, the transmission of heat.
The fire resistance value EI in units of time (minutes) and represents the time below which the building element can maintain and guarantee its stability, airtightness, and thermal insulation capabilities. For the classification of non-bearing elements (partition walls and suspended ceilings), the criterion R is automatically met if the criteria E and I are met.

E.I. partition walls Brochure

The fire resistance is defined as:
" ... the ability of a building element – be it a component or a structure – to maintain, according to a predetermined thermal program and for a certain period of time, stability (indicated by the symbol R), airtightness (indicated by the symbol E), and thermal insulation (indicated by the symbol I) ”.

Request Information

Certified fire resistance

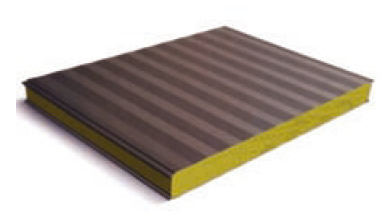

For 50 mm thick panels:

For 80 mm thick panels:

For 100 mm thick panels:

EI 30

EI 60

EI 120

Dimensions

Width: 1000 mm

Lenght by request

Insulation

Layers of bio-soluble mineral wool strips, staggered lengthwise.

Density 100 kg/m3

Thermic coefficient I: 0,038 W/m°K

Supports

Pre-coated galvanised steel

Thermal properties

K Thermal transmittance
THICKNESS U Thermal Conductivity K Thermal Transmittance R Thermal Insulance Rw Acoustic Insulation
50 EI 30 0,037 W/mK 0,74 W/m2K 1,351 m2K/W 30 d(B)
80 EI 60 0,037 W/mK 0,48 W/m2K 2,083 m2K/W 31 d(B)
100 EI 120 0,037 W/mK 0,39 W/m2K 2,564 m2K/W 33 d(B)
120 EI 120 0,037 W/mK 0,33 W/m2K 3,030 m2K/W 34 d(B)
150 EI 120 0,037 W/mK 0,26 W/m2K 3,846 m2K/W 35 d(B)

Special colours, copper, and aluminium available on request.

Upper face

Ribbed grey white
Ribbed grey white
(RAL 9002)
Smooth grey white
Smooth grey white
(RAL 9002)
Embossed pure white
Embossed pure white
(RAL 9010)
Micro-ribbing
Micro-ribbing

Lower side

Ribbed grey white
Ribbed grey white
(RAL 9002)
Smooth grey white
Smooth grey white
(RAL 9002)
Embossed pure white
Embossed pure white
(RAL 9010)
Microribbed
Micro-ribbing
