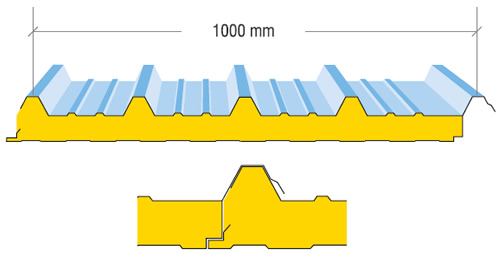

Ribbed panel with 5 crests Brochure

The best thermal insulation, absolute impermeability, and ease of installation. Ideal for civil and industrial construction, prefabricated buildings, cold rooms, and suspended ceilings.

Request Information

Upper face:

Lower face:

Insulation:

pre-coated galvanised steel (mm) 4/10

pre-coated galvanised steel (mm) 4/10

polyurethane foam, density 40 +/- 2 Kg/m3

Thermal Properties

K Trasmittance
Thickness U Thermal conductivity K Thermal Transmittance R Thermal Insulance Rw Acoustic Insulation
30 mm 0,022 W/mK 0,67 W/m2K 1,492 m2K/W 22 d(B)
40 mm 0,022 W/mK 0,53 W/m2K 1,886 m2K/W 23 d(B)
50 mm 0,022 W/mK 0,42 W/m2K 2,380 m2K/W 25 d(B)
60 mm 0,022 W/mK 0,34 W/m2K 2,941 m2K/W 26 d(B)
80 mm 0,022 W/mK 0,26 W/m2K 3,846 m2K/W 29 d(B)
100 mm 0,022 W/mK 0,21 W/m2K 4,761 m2K/W 31 d(B)
120 mm 0,022 W/mK 0,17 W/m2K 5,882 m2K/W 33 d(B)
150 mm 0,022 W/mK 0,14 W/m2K 7,142 m2K/W 34 d(B)

Static Properties

Thermal Properties

Allowable loads
Thickness Distance between supports
1,50 2,00 2,50 3,00 3,50 4,00
30 mm 290 165 100 70 55 45
40 mm 320 240 150 100 80 70
50 mm 440 290 220 180 130 95
60 mm 500 360 260 200 160 115
80 mm 560 385 320 290 220 165
100 mm 700 420 360 315 280 230
120 mm 820 570 440 390 320 280

U = Kg/m2

Thermal Properties

Allowable loads with 4 supports
Thickness Distance between supports
1,50 2,00 2,50 3,00 3,50 4,00
30 mm 290 165 100 80 65 50
40 mm 320 240 150 120 90 80
50 mm 440 290 220 200 145 105
60 mm 500 360 260 200 195 125
80 mm 560 385 320 300 235 185
100 mm 700 420 360 325 290 245
120 mm 820 570 440 420 350 300

U = Kg/m2

Special colours, copper, and aluminium available on request.

Upper face

White grey
White grey
(RAL 9002)
Siena red
Siena red
(RAL 3009)
Dark brown
Dark brown
(RAL 8017)

Lower face

Ribbed grey white
Ribbed grey white
(RAL 9002)
Smooth grey white
Smooth grey white
(RAL 9002)
Embossed pure white
Embossed pure white
(RAL 9010)

Below are the technical and dimensional characteristics of each component to aid with installing and completing your installations.

Colmo sagomato

Fig. 1 - Shaped ridge flashing: double hinge-style shaped ridge flashing.

Scossalina laterale chiusa

Fig. 3 - Closed lateral flashing: to protect the protruding lateral edge of the panels.

Scossalina laterale aperta

Fig. 5 - Ridge cap flashing: to protect the upper edge of the panel where it protrudes beyond a ridge.

Silhouette profilo testata

Fig. 7 - Front closure strip: for the lower edge of the panels, available in thicknesses of 30, 40 and 50 mm

Cappellotto

Fig. 9 - Fixing screw cap

Colmo liscio

Fig. 2 - Smooth ridge flashing: hinge-style ridge to be shaped on-site.

Scossalina frontale con scanalature

Fig. 4 - Open lateral flashing: to protect the lateral edge of the panel adjacent to a wall.

Frontalino - profilo per testata

Fig. 6 - Cap flashing: to protect the upper edge of the panel adjacent to a wall.

Rondella in gomma

Fig. 8 - Rubber plug

Viti

Fig. 10 - Self-piercing and tapping screws available in various sizes.
